Group1_nam

Group members

  • Nam Nguyen
  • Labeeb Zafar
  • Siavash
  • Nguyen Dinh

Output Devices

This is the documentation for the output LCD device.

1. Set up

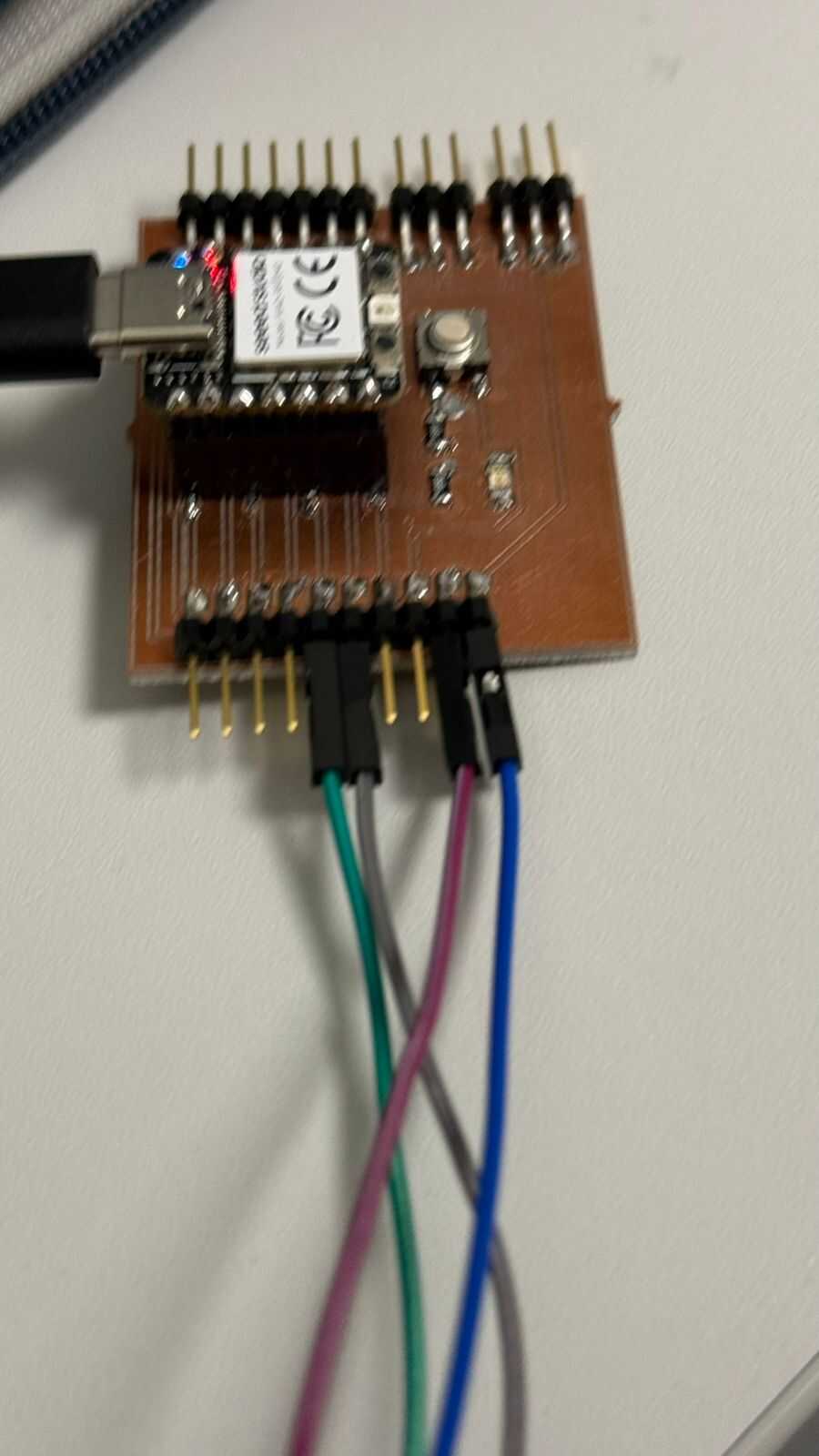

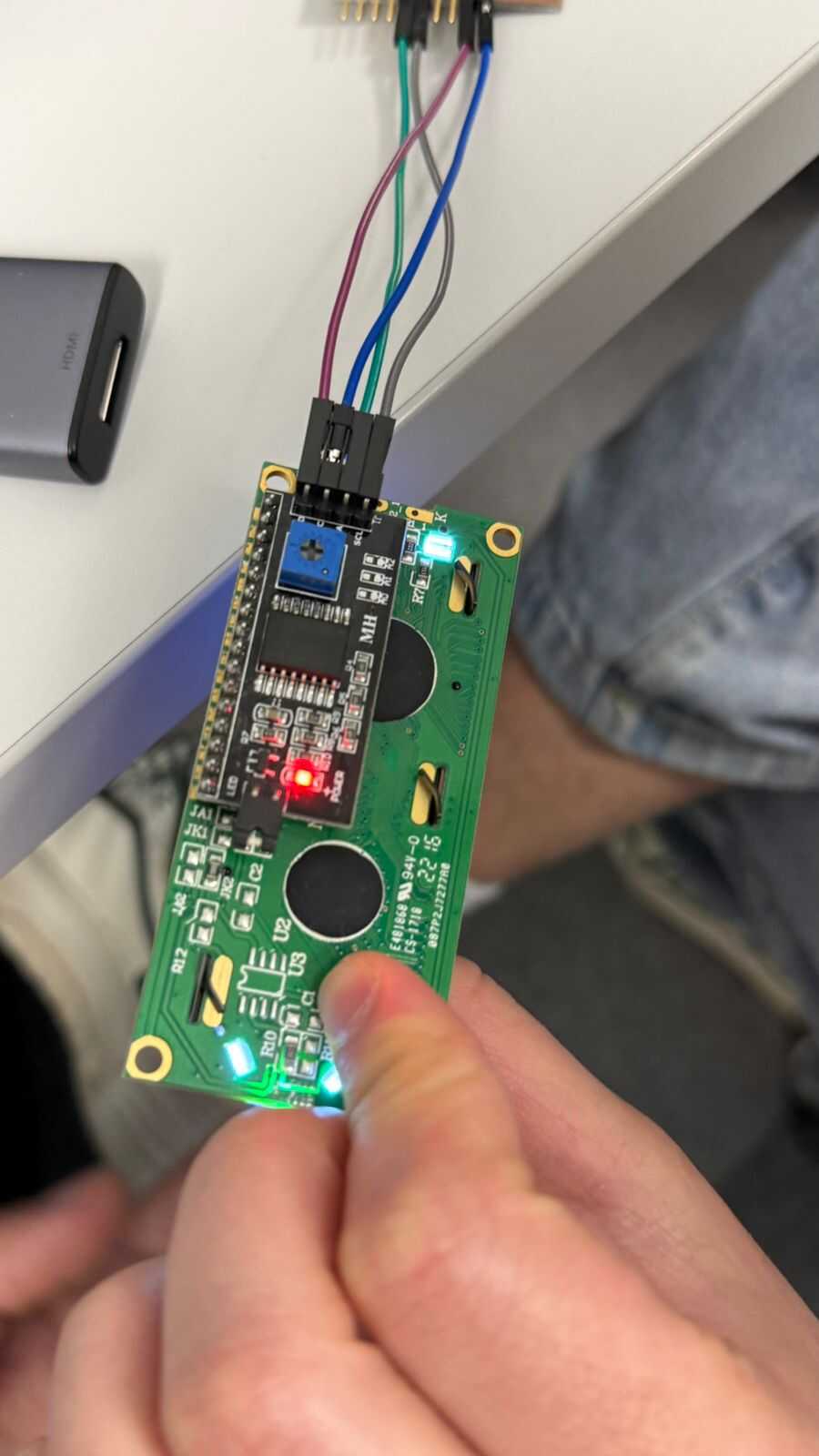

So first we start by connecting female to female wires to the correct pins of our PCB. The 4 pins are SDA, SCL, GND, and 5V power.

setup

setup2

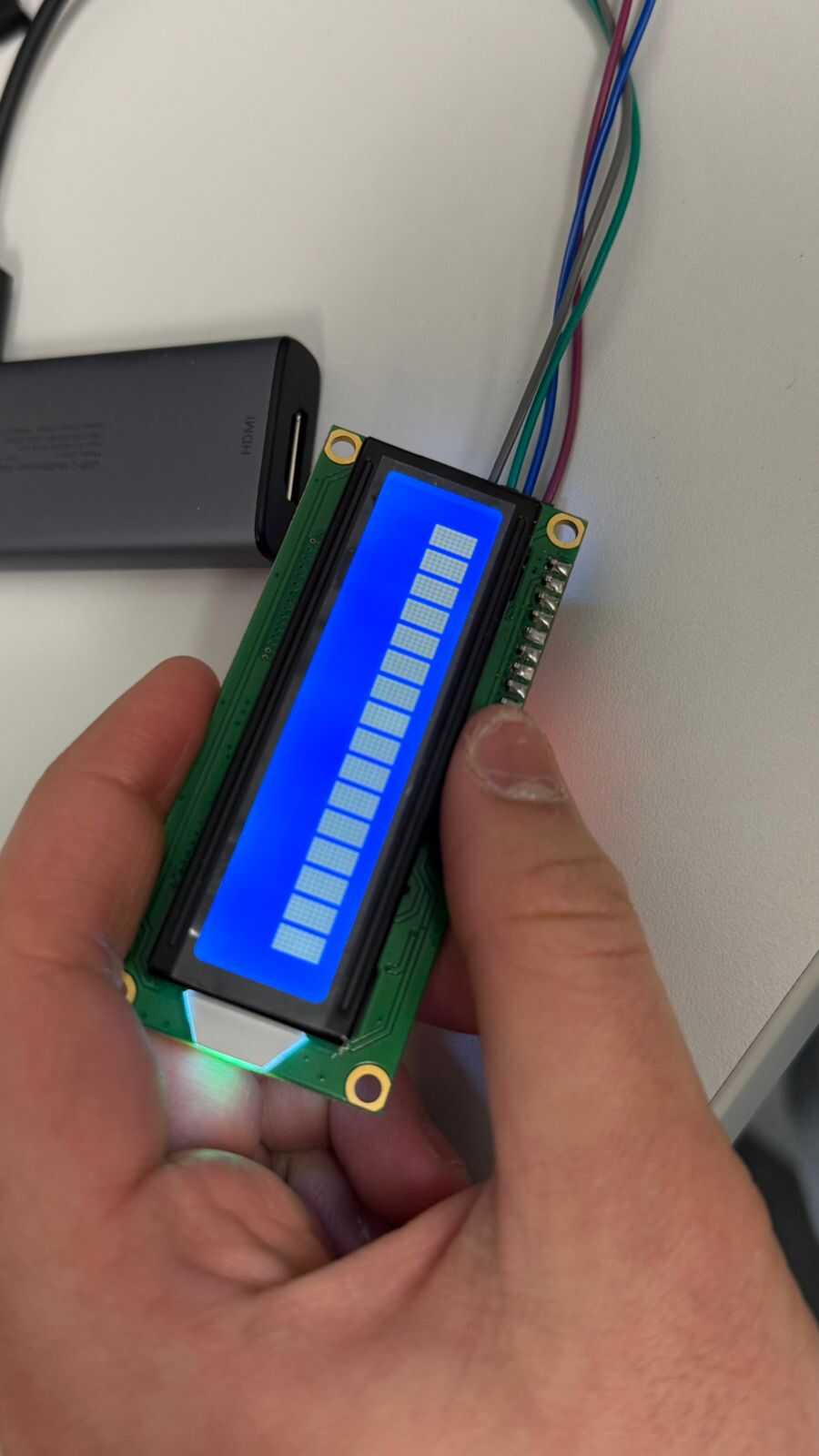

When everything is connected properly, this should be shown initially on the screen.

initial

2. Code

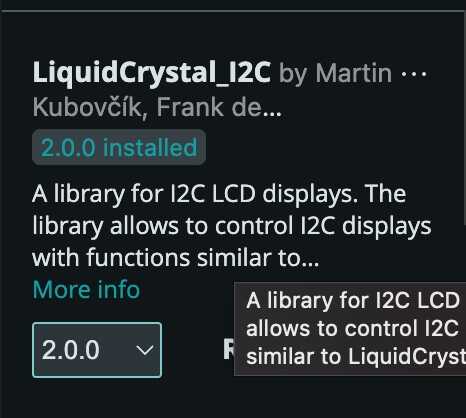

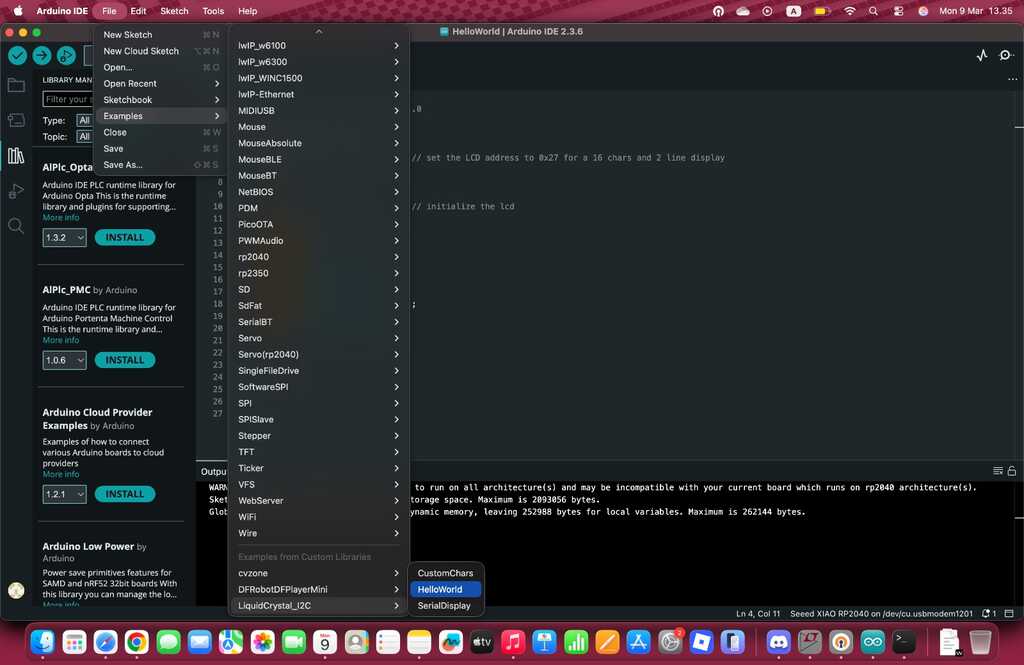

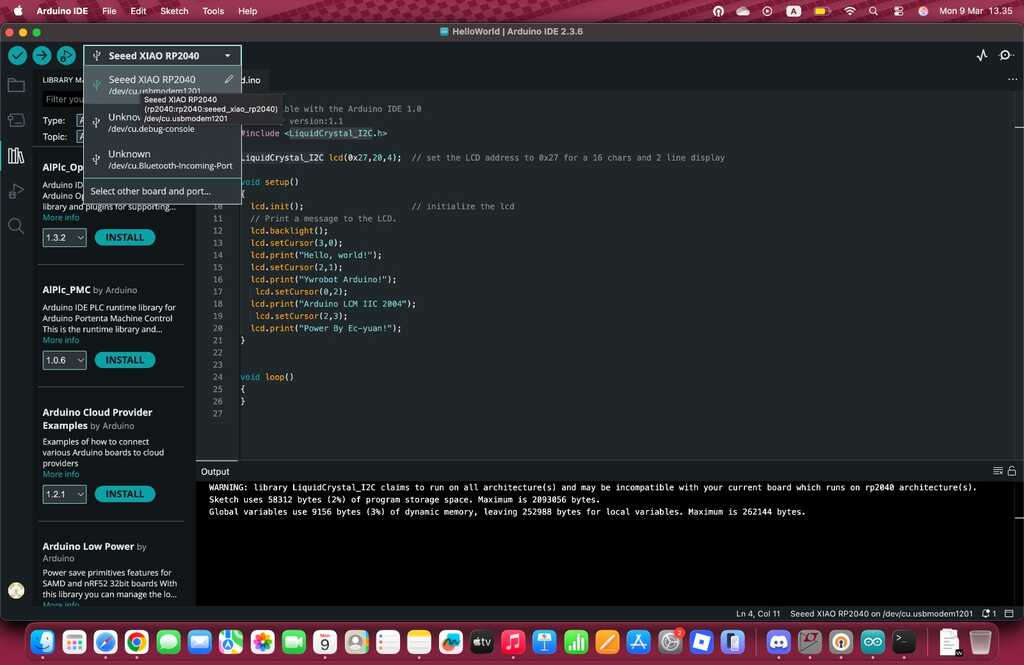

So now we go to our Arduino IDE application and install the library, after doing that we can select the example from this library and make sure that the board and port chosen is correct.

code

code2

code3

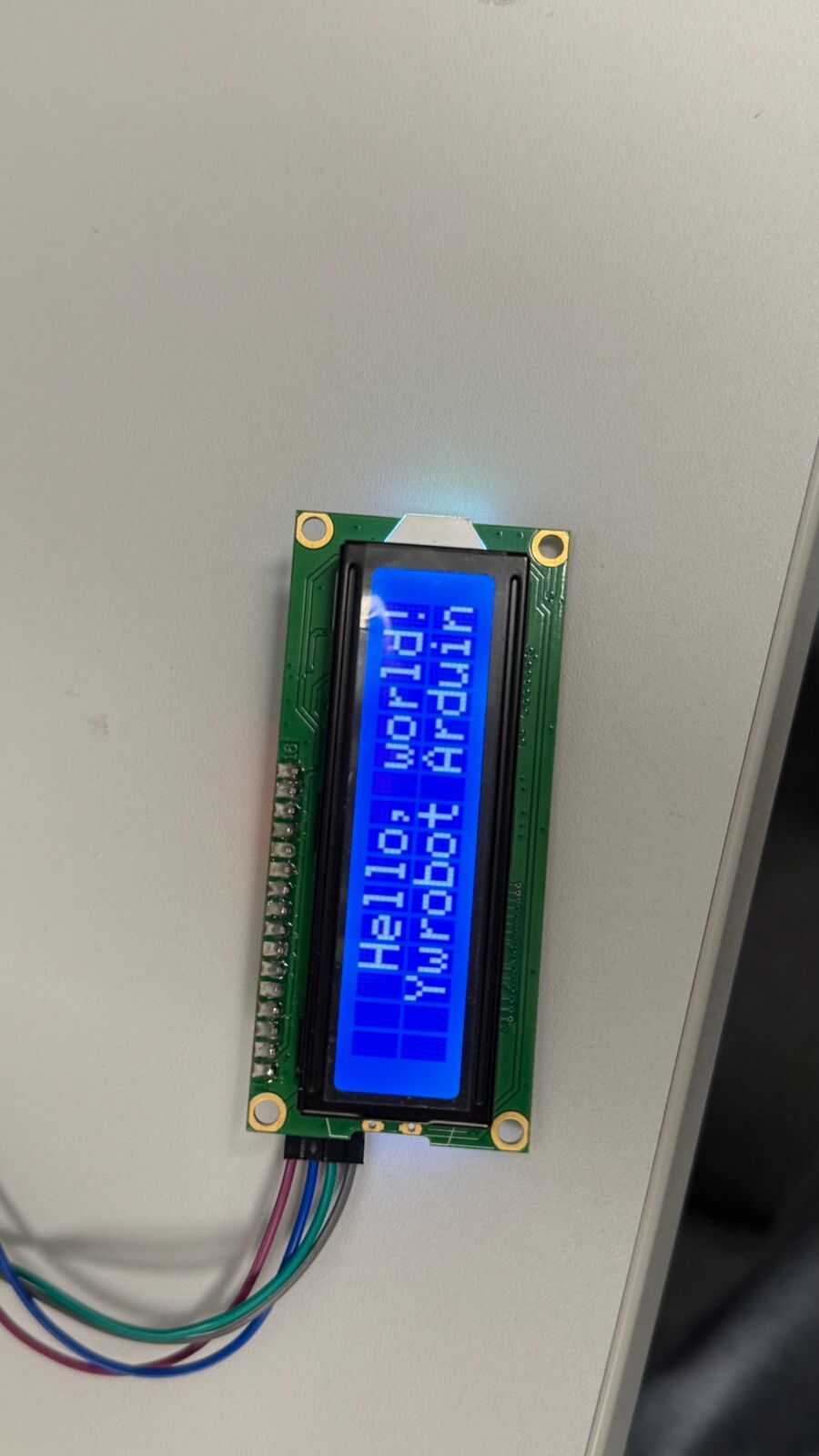

So, after running the sample “Hello World” program, if everything is properly done the screen should display this image.

result

3. Power Consumption

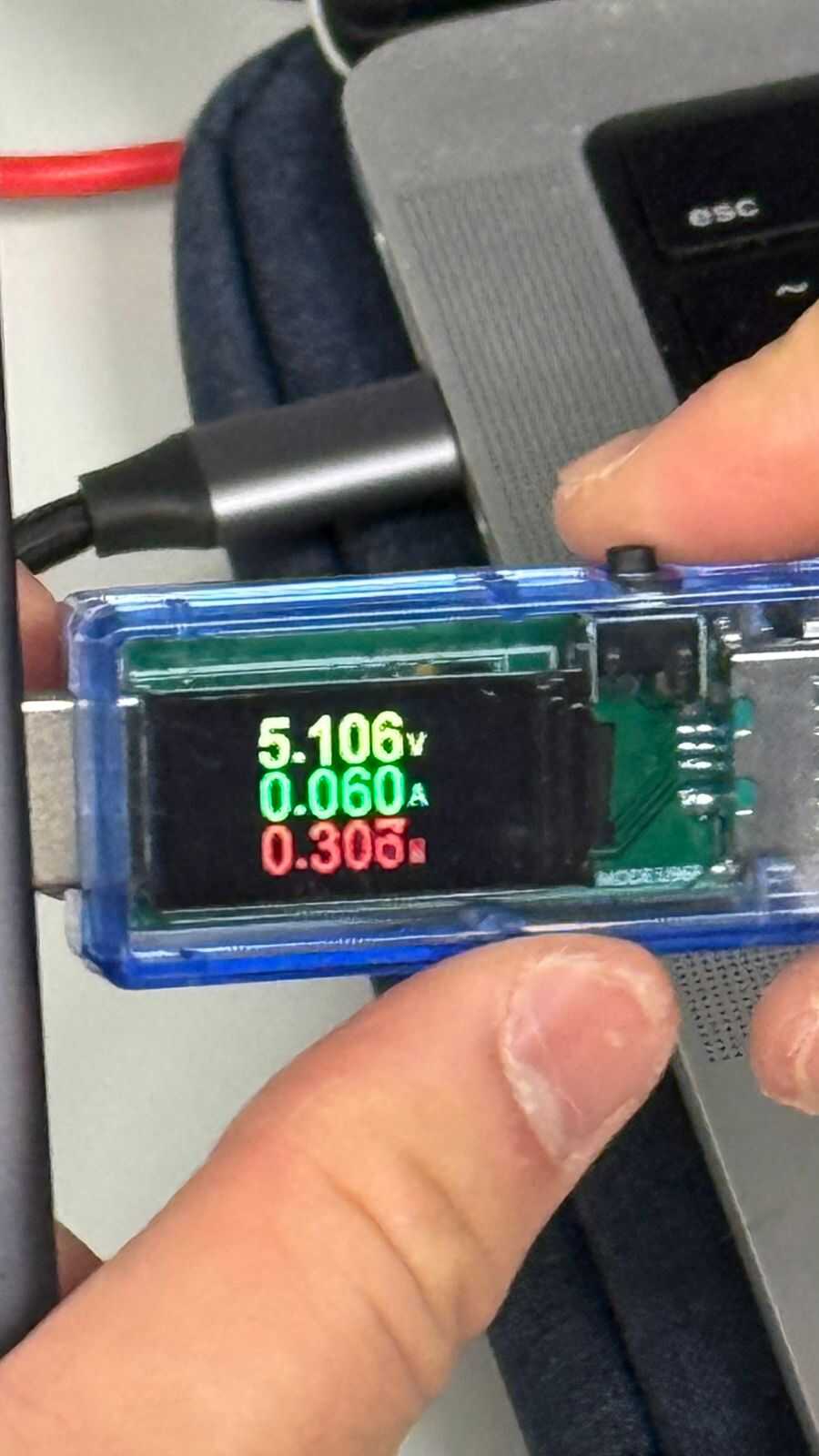

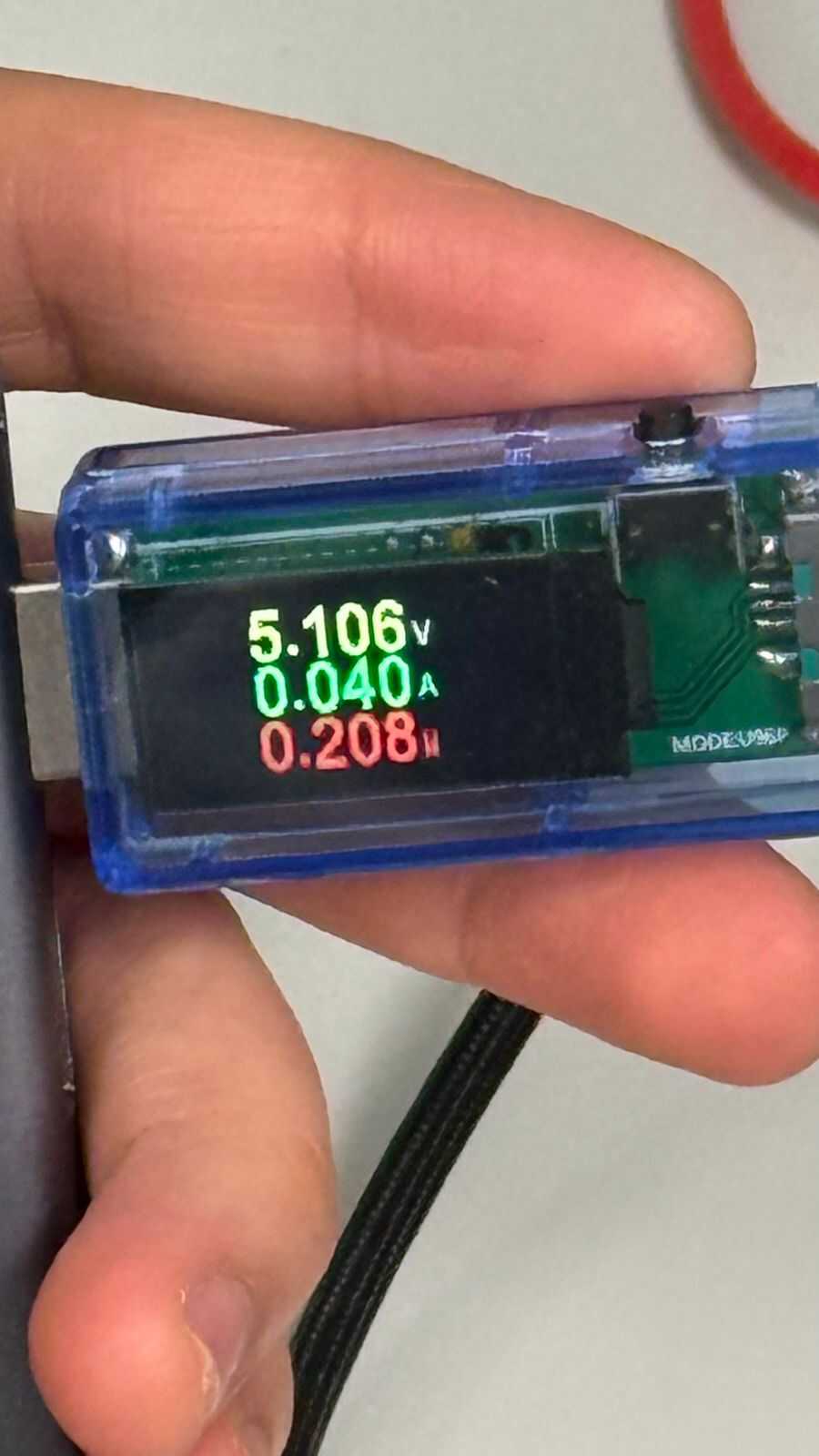

Now we want to calculate the power consumption of the LCD, by measuring the power consumption with the LCD (first image) and then subtracting that value with the power consumption without the LCD (second image). We use a USB (Nam knows the name) that shows us the value of the voltage and current from which we can calculate the power (P = IV). The results are shown below (third image).

power1

power2

power3
